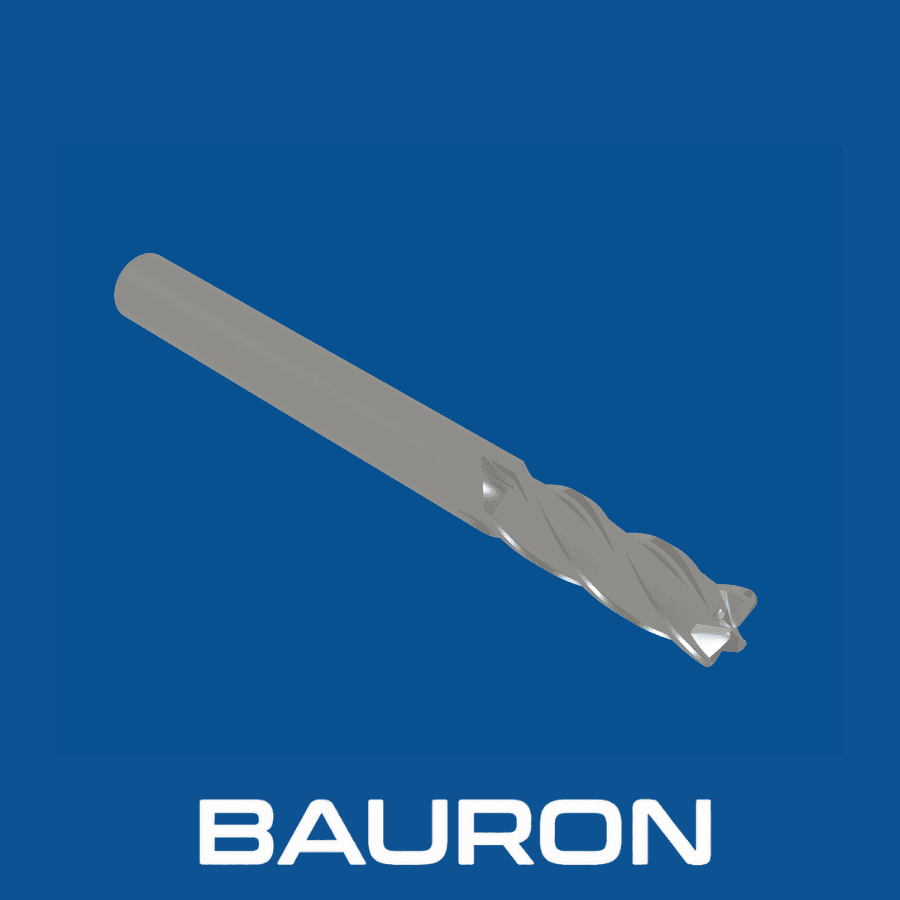

Corner Radius End Mills

Designed for milling operations requiring smooth corner radii and stronger edges. Improves tool life and reduces edge chipping during machining.

What Are Corner Radius End Mills and How Do They Work?

Close-up of a bronze-coated four-flute carbide end mill

Designed for milling operations requiring smooth corner radii and stronger edges. Improves tool life and reduces edge chipping during machining. The radiused corners make these a stronger variant of standard carbide end mills. Where a drawing calls for sharp 90-degree internal corners, carbide square end mills are the better fit.

Smooth Corner Radii

Each corner radius end mill is designed for milling operations requiring smooth corner radii and stronger edges.

Improved Tool Life

As a corner radius tool, it improves tool life and reduces edge chipping during machining.

Key Features and Benefits of Corner Radius End Mills

Row of black-coated carbide end mills on an acrylic stand

Smooth Corner Radii

Each corner radius end mill is designed for milling operations requiring smooth corner radii and stronger edges.

Improved Tool Life

As a corner radius tool, it improves tool life and reduces edge chipping during machining.

Corner Radius End Mills Specifications

Corner Radius End Mills Specifications
SpecificationRange / Details
Custom SpecificationsContact Bauron engineering for application-specific dimensions, materials, coatings, and performance requirements.

Materials and Coatings Available for Corner Radius End Mills

Materials and Coatings Available for Corner Radius End Mills
Material / CoatingBest ForKey Advantage
Application-Matched ToolingContact Bauron to review substrate and coating options for your material and machining environment.Tooling can be matched to your workpiece material, machine setup, and production requirements.

Bauron can review substrate and coating options based on your application, material, and machining requirements. As an aerospace tooling company, Bauron also supplies corner radius tools for titanium and nickel-alloy parts, where the radius helps protect the cutting corners.

Which Machines Use Corner Radius End Mills?

CNC Machining Centers

Used in automated milling, drilling, reaming, or threading operations depending on the tool type.

CNC Lathes with Live Tooling

Supports in-process holemaking, profiling, or finishing on turned components.

Applications and Industries for Corner Radius End Mills

Coated carbide cutters on a table in front of a CNC machine with coolant spray
Smooth Corner Radii

Each corner radius end mill is designed for milling operations requiring smooth corner radii and stronger edges.

Improved Tool Life

As a corner radius tool, it improves tool life and reduces edge chipping during machining.

Frequently Asked Questions About Corner Radius End Mills

Does Bauron manufacture custom corner radius end mills?

Bauron Tools designs and manufactures custom end mills tailored to your specifications.

How do I request pricing or engineering support?

Use Get a Quote to submit your application details or contact the Bauron engineering team for technical review.

What is a corner radius end mill used for?

A corner radius end mill is a flat-bottom milling cutter whose cutting corners are ground to a small radius instead of a sharp 90-degree point. It is used for pocketing, shoulder milling and roughing where a filleted floor-to-wall transition is acceptable, because the radius strengthens the corner, reduces chipping and extends tool life.

How do I choose the corner radius size?

The tool's corner radius is reproduced as the fillet between floor and wall, so it should match the radius on the part drawing. Where the drawing allows a choice, a larger corner radius tool (around 1 mm) gives a stronger edge for roughing, while 0.2–0.5 mm radii keep walls close to square for finishing.

Is a corner radius end mill better than a square end mill for hard materials?

Yes. In hardened steels, titanium and nickel alloys a corner radius end mill usually outlasts a square end mill, because the radiused corner spreads the cutting load over a longer edge and resists the chipping that sharp corners suffer under heat and pressure. A square end mill is only preferable when the part needs truly sharp internal corners.

Shared engineering resource

Design and Engineering Support

Customize your own tool by visiting the CNC Tool Design page, or contact Bauron for application-specific tooling support. Corner radius designs can be reviewed together with any other custom milling cutters the part requires. Draft-angled walls with a radiused floor can be cut with carbide tapered end mills that have a corner-radius tip.
